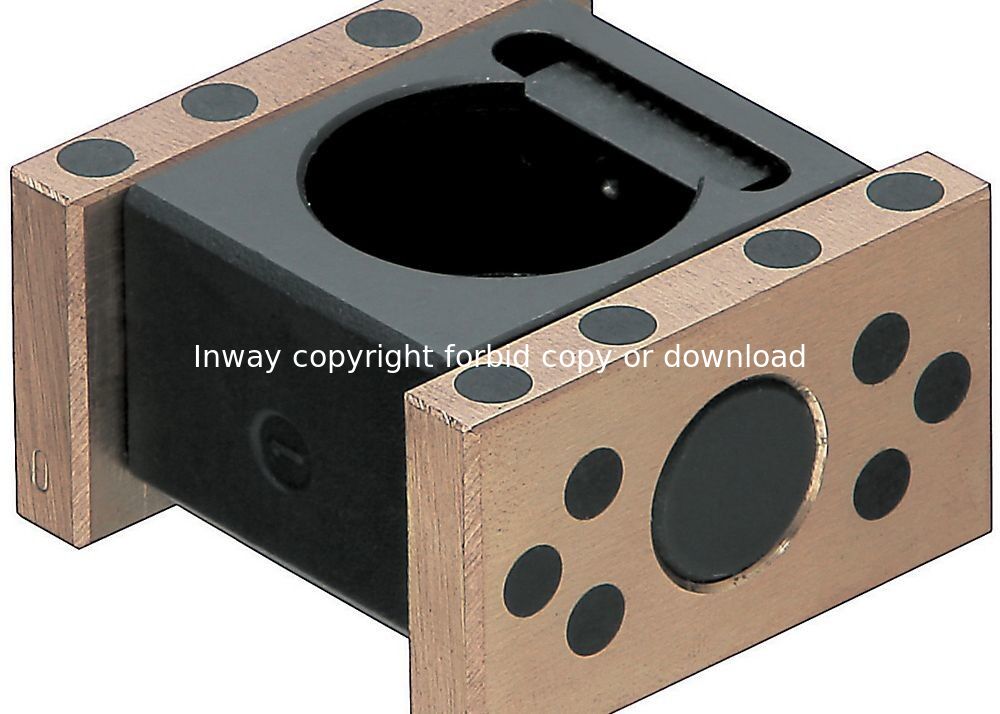

SCZNP Injection Molded Parts Oil Free Slide Inclined Pin Holders

SCZNP Injection Molded Parts Oil Free Slide Inclined Pin Holders
SCZNP Injection Molded Parts Oil Free Slide Inclined Pin Holders

Large Image :  SCZNP Injection Molded Parts Oil Free Slide Inclined Pin Holders Get Best Price

Product Details:
Place of Origin: CHINA
Brand Name: INWAY
Certification: ISO9001
Model Number: SCZNP
Payment & Shipping Terms:
Minimum Order Quantity: 1 PCS
Price: Negotiation
Packaging Details: Carton+pallet
Delivery Time: 5 work days or based on quantity
Payment Terms: L/C, T/T
Supply Ability: 100 tons/month
Contact Now
Detailed Product Description
Application: Injection Mold Size: Standard
Standard: Punch Type: Fix Type
Material: Bronze With Graphite Shaping Mode: Two Slide Plate
Highlight:

injection molding tool

,

self lubricating metal

SCZNP Injection Molded Parts Oil Free Slide Inclined Pin Holders
Standard Oil-Free Slide Units For Loose Core - Standard/Fixed Type
Key Features of Oil-free Slide Units for Loose Core
  • Guide parts compatible with SCZN and SCZA series
  • Space-saving design reduces slide base processing on mold body
  • Neck sliding structure with automatic center adjustment function
  • Reduces abrasion and scoring on guide and slide plates
Component Specifications
Item Component Name Material Quantity
① Inclined Pin Holder SCM440 1
② Slide Plate CAC304 + Solid lubricant 2
③ Key S45C 1
Fixed Type Specifications
Type D D1 d d1 h h1 h2 N N1 S a T
SCZNP - 11 5.5 - 16 10 - 30 17 20 35 6.5
16 15 9 16 18 11 3 33 20 20 40 6.5
20 18 11 20 22 13 5.5 38 25 24 40 6.5
25 22 11 20 26 15 5.5 45 31 26 45 7
30 27.5 11 20 30 17 3.5 51 36 30 55 7.5
SCZNP is sold as a set including both components of SCZN: ② inclined pin holder and ③ slide plate.
SCZNP Injection Molded Parts Oil Free Slide Inclined Pin Holders 0
