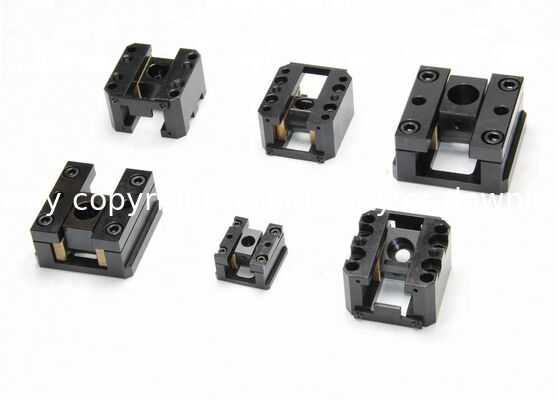

Loose Core Injection Mold Components punch SCZA Slide Unit Inclined Pin Fixing Type

Large Image : Loose Core Injection Mold Components punch SCZA Slide Unit Inclined Pin Fixing Type Get Best Price

Product Details:

Place of Origin:	CHINA
Brand Name:	INWAY
Certification:	ISO9001
Model Number:	SCZA

Payment & Shipping Terms:

Minimum Order Quantity:	1 PCS
Price:	Negotiation
Packaging Details:	Carton+pallet
Delivery Time:	5 work days or based on quantity
Payment Terms:	L/C, T/T
Supply Ability:	100 tons/month

Contact Now

Detailed Product Description

Application:	Injection Mold	Size:	Standard
Standard:	Punch	Type:	Adjusting Type
Material:	Steel With Hardness	Shaping Mode:	Die Casting
Highlight:	injection molded parts , self lubricating metal

Loose Core Injection Mold Components - SCZA Slide Unit Inclined Pin Fixing Type

Standard Oil-Free Slide Units For Loose Core - Standard/Fixed Type

Key Features of Oil-free Slide Units for Loose Core

Dimensions for inclined pin edge cutout and screw size (PM) available in reference tables
Counterbore on inclined pin holder accommodates socket head cap screw with spring washer
Dual mounting options: screwing into ejector plate or screwing into unit
For unit mounting, use socket head cap screw corresponding to BM in bolt hole dimensions
For plate mounting, select rank below corresponding BM (M6 screw when BM is M8)
Apply grease prior to mounting for wear protection during initial running-in
Recommended bushing use for long stroke applications to support inclined pin

Component Specifications

Item	Components	Parts Name	Material	Quantity
①	Slide base	Slide Base	S55C	2
②	Inclined pin holder	Inclined Pin Holder	SCM440	1
③	Slide plate	Slide Plate	CAC304 + Solid lubricant	2
④	Parallel Key	Key	S45C	1
⑤	Stopper	Stopper	SS400	2
