SCZN Injection Mold Component Slide Unit Inclined Pin Fixing Type Follow

Large Image : SCZN Injection Mold Component Slide Unit Inclined Pin Fixing Type Follow Get Best Price

Product Details:

Place of Origin:	CHINA
Brand Name:	INWAY
Certification:	ISO9001
Model Number:	SCZN

Payment & Shipping Terms:

Minimum Order Quantity:	1 PCS
Price:	Negotiation
Packaging Details:	Carton+pallet
Delivery Time:	5 work days or based on quantity
Payment Terms:	L/C, T/T
Supply Ability:	100 tons/month

Contact Now

Detailed Product Description

Application:	Injection Mold	Size:	Customized
Standard:	Punch	Type:	Fixing Type
Material:	Steel With Hardness	Shaping Mode:	Die Casting
Highlight:	injection molded parts , self lubricating metal

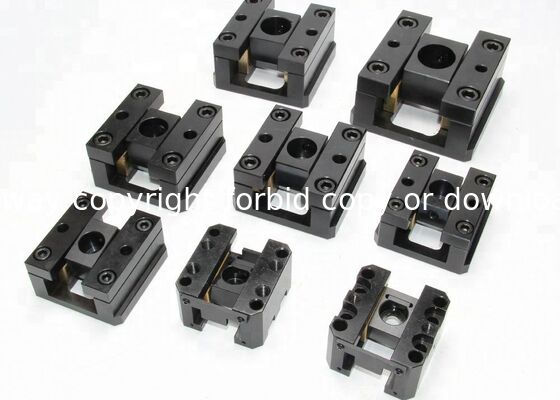

SCZN Injection Mold Component Slide Unit Inclined Pin Fixing Type Follow

Slide Unit Inclined Pin Fixing Type Loose Core Follow to punch Standard SCZN

Punch Standard Oil-Free Slide Units For Loose Core - Standard/Fixed Type

Features of Oil-free Slide Units for Loose Core

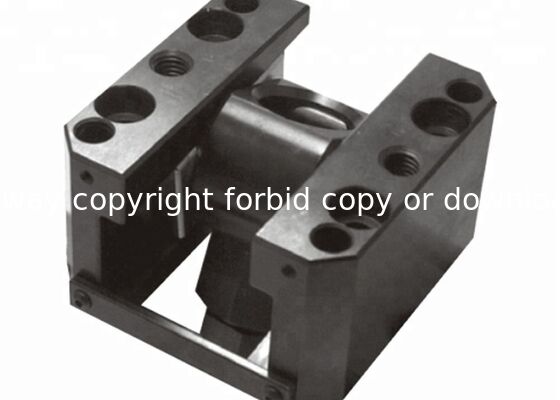

Enables the inclined pin to slide smoothly when pushing out a loose core (including undercut) at an angle
The inclined pin holder slides within the range of θ, and the automatic center adjustment function reduces wear and scoring on the guide and slide plates

Item	Components	Parts Name	Piece
①	Slide base	Slide Base	S55C \| 2
②	Inclined pin holder	Inclined Pin Holder	SCM440 \| 1
③	Slide plate	Slide Plate	* CAC304＋Solid lubricant \| 2
④	Parallel Key	Key	S45C \| 1
⑤	Stopper	Stopper	SS400 \| 2

* High strength brass casting class 4 (Old JIS: HBsC4)

①Slide base	②Inclined pin holder	③Slide Plate	G	F	Part number	Mounting angle of slide plate A° 1°Increments
W 56	L 55	H 35	C1 5	C2 －	D1 11	d 5.5	d1 －	h 16	h1 10	h2 －	N 30	S 20	a 35	Type 17.5	D 4.65	SCZN	12	0 1 2 3 4 5 6 7 8 9 10
60	65	36	6	－	15	9	16	18	11	3	33	20	40	18	4.65	16
68	70	43	6	5	18	11	20	22	13	5.5	38	24	40	21.5	4.65	20
75	80	45	6	5	22	11	20	26	15	5.5	45	26	45	22.5	4.65	25
81	95	54	6	5	27.5	11	20	30	17	3.5	51	30	55	27	4.65	30
