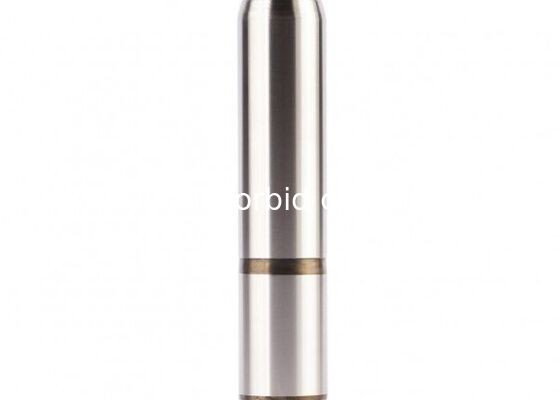

Guide post according to DIN 9833 Stamping Die Components Guide Pillars large stamping molds

Large Image : Guide post according to DIN 9833 Stamping Die Components Guide Pillars large stamping molds Get Best Price

Product Details:

Place of Origin:	CHINA
Brand Name:	INWAY
Certification:	ISO9001
Model Number:	DIN9833

Payment & Shipping Terms:

Minimum Order Quantity:	1 PCS
Price:	Negotiation
Packaging Details:	Carton+pallet
Delivery Time:	5 work days or based on quantity
Payment Terms:	L/C, T/T
Supply Ability:	100 tons/month

Contact Now

Detailed Product Description

Dimeter:	M3 M4 M5 M6	Application:	Cam Unit
Size:	Customized	Standard:	Sankyo
Type:	Ball Head	Material:	Steel
Highlight:	stamping die parts , cam slide plate

Guide Post DIN 9833 - Stamping Die Components

High-precision guide pillars designed for large stamping molds, manufactured according to DIN 9833 standards. These guide posts ensure accurate alignment and smooth operation in industrial stamping applications.

Technical Specifications

Type	D	D f6	D1 r6	L1	L2	L3	R1	R2	D2	D3	DIN Code	Catalog No.	L
GPMA	25	25	25	8	4	40	3	2	-	-	DIN9833－D25×125×8		125
		DIN9833－D25×140×8										140
		DIN9833－D25×160×8										160
		DIN9833－D25×180×8										180
		DIN9833－D25×200×8										200
		DIN9833－D25×224×8										224
GPMA	32	32	32	8	4	45	3	2	-	-	─		125
		DIN9833－D32×140×8										140
		DIN9833－D32×160×8										160
		DIN9833－D32×180×8										180
		DIN9833－D32×200×8										200
		DIN9833－D32×224×8										224
		DIN9833－D32×250×8										250
