VDI 3387 Self Lube Wear Plates Huge Type Guide Bracket Steel With Solid Lubricant

All Products

Self Lubricating Bearings (31)

Solid Lubricant Bearings (18)

Sintered Metal Bearings (15)

Stamping Die Components (11)

Injection Mold Components (16)

Self Lube Wear Plates (12)

Hardened Steel Bushings (13)

Cast Bronze Bushings (12)

Composite Bushings (16)

Bimetal Bearings (20)

I'm Online Chat Now

VDI 3387 Self Lube Wear Plates Huge Type Guide Bracket Steel With Solid Lubricant

Large Image : VDI 3387 Self Lube Wear Plates Huge Type Guide Bracket Steel With Solid Lubricant Get Best Price

Product Details:

Place of Origin:	CHINA
Brand Name:	INWAY
Certification:	ISO9001
Model Number:	VDI3387

Payment & Shipping Terms:

Minimum Order Quantity:	1 PCS
Price:	Negotiation
Packaging Details:	Carton+pallet
Delivery Time:	5 work days or based on quantity
Payment Terms:	L/C, T/T
Supply Ability:	100 tons/month

Contact Now

Detailed Product Description

Shape:	V Block	Application:	Cam Unit
Size:	Customized	Standard:	INW
Type:	Cutting Tools	Material:	Steel With Graphite
Highlight:	bronze wear plate , brass wear plate

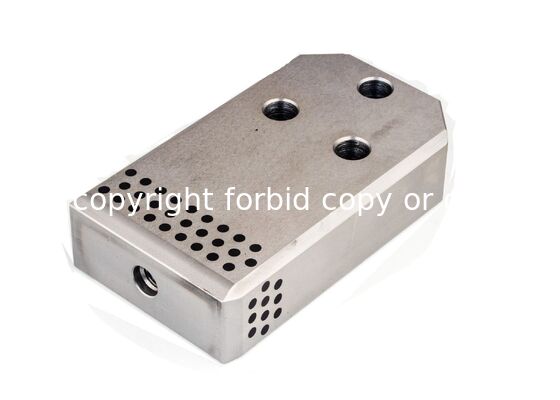

VDI 3387 Self Lube Wear Plates Huge Type Guide Bracket Steel With Solid Lubricant

Angular cam units of oilless plates for standard parts of automobile dies and others

INW following to VDI 3387 Standard Heel guide plates. Before operation, make sure to grease the guide element (initial lubrication). Only this first lubrication is necessary thanks to the embedded solid lubricant.

Product Features

Manufactured according to VDI 3357 standard, compatible with major European automobile factories including VW, Audi, and BMW
Available in three to four material types to suit various applications
Material options include alloy bronze with graphite, hardened surface steel, and sintered materials

Product Operation

Superior wear resistance in applications where oil film is seldom present
Maintains structural integrity at low temperatures and suitable for cryogenic applications
Ensure sliding surfaces are free from foreign matter such as metal chips or dirt during operation

Product Application

High performance under high-load and low-speed operating conditions
Self-lubricating bearing with embedded solid lubricant conforming to ASTM C86300 standards
Serviceable without requiring additional lubrication after initial application

Technical Specifications

Wf7	d1	d2	w1	S	f	ℓ1	ℓ2	t	r	Type	VDLCode	Catalog No.	L	T
Type	W	63	－0.030 －0.060	14	20	36	30	18	20	50	16	16	A	─
GPZ	63	180	36	50	200	74	224	71	30	71	180	50	200	50
74	224	90	－0.036 －0.071	18	26	40	28	21	25	90	200	45	64	224
90	250	112	40	112	200	64	224	90	VDI3387－112×45×250	250	140	－0.043 －0.083	22	33
90	105	36	40	80	25.5	31.5	B	VDI3387－140×45×315	140	315	190	VDI3387－140×45×400	400
VDI3387－140×56×400	400	56	190	－0.050 －0.096	VDI3387－190×56×400	190	400	240	26	40	160	160	30.5	31.5
VDI3387－240×56×500	240	500	320	VDI3387－240×56×630	630
