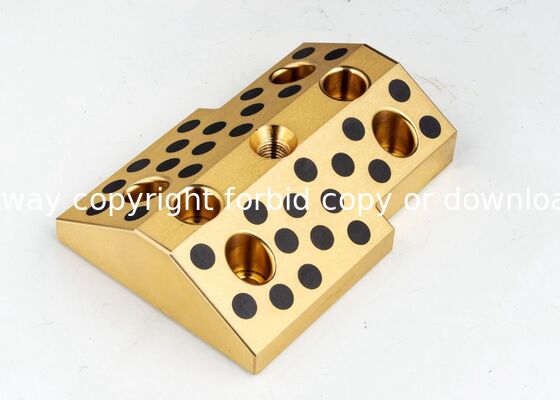

PCSU Self Lube Wear Plates Sliding Block SUBW Cam Unit V Type Customized Size
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Shape: | V Block | Application: | Cam Unit |
|---|---|---|---|
| Size: | Customized | Standard: | Sankyo |
| Type: | Cutting Tools | Material: | Bronze With Graphite |
| Highlight: | brass wear plate,self lubricating bushing material |
||
PCSU Self-Lubricating Wear Plates & Sliding Blocks - SUBW Cam Unit V Type
Angular cam units with oil-free plates for automotive die standard parts and industrial applications
Product Overview
This series of self-lubricating wear plates and sliding blocks are manufactured from high-strength cast brass with integrated graphite lubrication. The robust brass base provides exceptional load-bearing capacity while the embedded solid lubricants ensure continuous self-lubrication during operation.
These components are extensively utilized across various industrial sectors including casting machinery, mining equipment, marine applications, steam turbines, and automotive manufacturing.
Key Features
- No pre-lubrication required before installation
- Operates effectively across extreme temperature ranges from -40°C to +300°C
- Maintains performance at low operating speeds
- Available in customized sizes to meet specific application requirements
Technical Specifications
| Material Options | Bronze (CuZn25Al6Fe3Mn3 + Graphite) | Cast-iron + Graphite |
|---|---|---|
| Density | 8.2 g/cm³ | |
| Tensile Strength | ≥ 755 N/mm² | |
| Compressive Toughness | 400-500 KJ/m³ | |
| Hardness | ≥ 200 HB | |
| Maximum Load Pressure | 100 N/mm² | |
| Speed Limit | 0.5 m/s | |
| PV Value Limit | 1.65 N/mm²·m/s | |
| Friction Coefficient (Oil Lubricated) | 0.03 | |
| Friction Coefficient (Dry) | 0.16 | |
| Operating Temperature Range | -40°C to +300°C | |
