Steel Wear Plate INW VDI 3357 U guider Sliding Block Prismatic Guide Steel

Large Image : Steel Wear Plate INW VDI 3357 U guider Sliding Block Prismatic Guide Steel Get Best Price

Product Details:

Place of Origin:	CHINA
Brand Name:	INWAY
Certification:	ISO9001
Model Number:	VDI3357 BG

Payment & Shipping Terms:

Minimum Order Quantity:	1 PCS
Price:	Negotiation
Packaging Details:	Carton+pallet
Delivery Time:	5 work days or based on quantity
Payment Terms:	L/C, T/T
Supply Ability:	100 tons/month

Contact Now

Detailed Product Description

Shape:	U Block	Application:	Cam Unit
Size:	Customized	Standard:	INW
Type:	Cutting Tools	Material:	Steel
Highlight:	bronze wear plate , brass wear plate

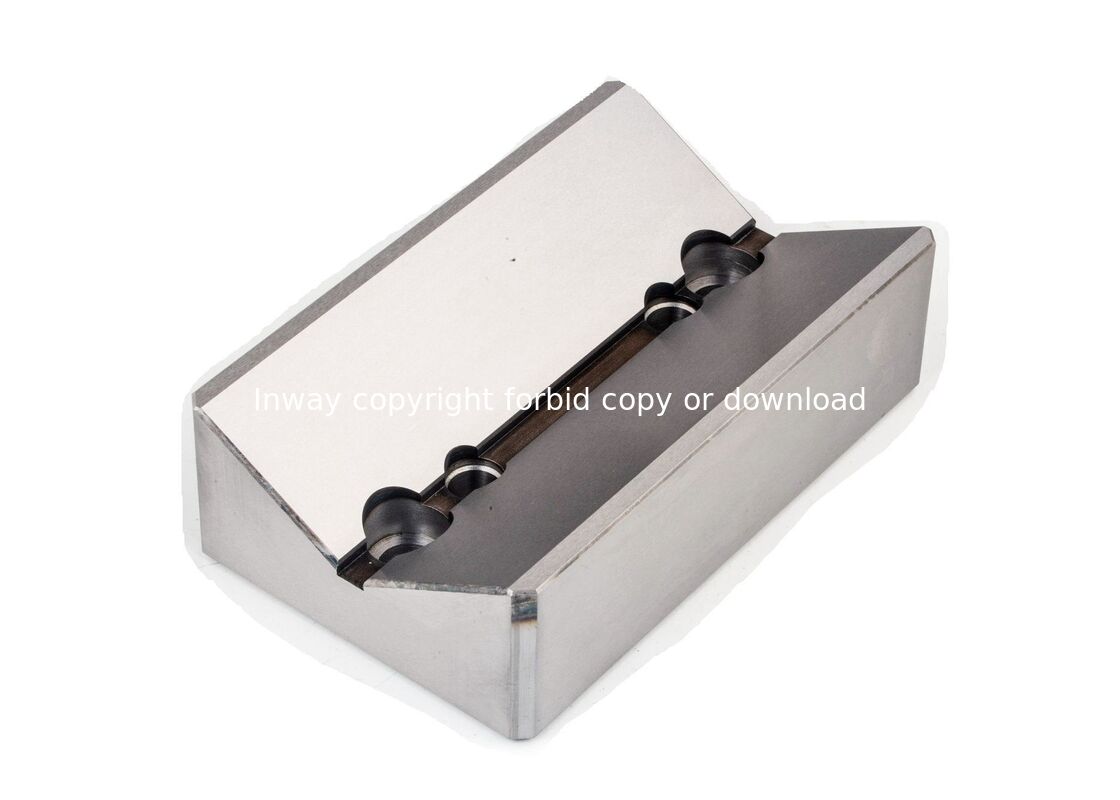

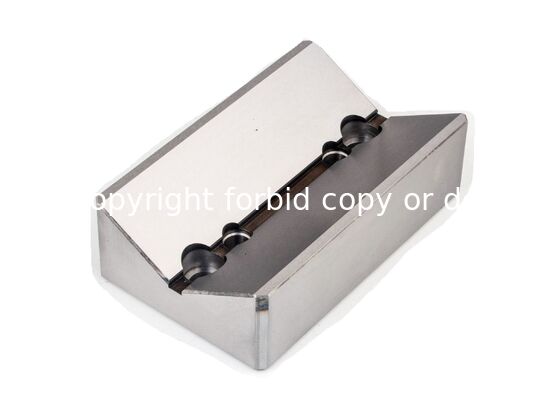

Steel Wear Plate INW VDI 3357 U Guider Sliding Block Prismatic Guide Steel

Steel Wear Plate INW VDI 3357 U guide U block for cam unit with precision sliding faces and durable construction.

Product Specifications

Type	Straight
Bushing Material	Graphite Impregnated Brass
I.D. d(mm)	6
O.D. D(mm)	10
Maximum Allowable PV Value(N/mm²•m/s)	1.65
Maximum Allowable Load(N/mm²)	29
Operating Temperature Range(℃)	-40~150
Operating Temperature Range (No Lubrication) Min	-40

Key Features

Material: Steel with surface hardness treatment
Execution: Sliding faces ground for precision performance
Designed for cam unit applications
Prismatic guide steel construction

Dimensional Specifications

Spec Holes	ℓ1	ℓ2	ℓ3	t1	t2	t3	d1	d2	d3	VDI Code	Catalog No.	L	T
Type W	2	─	125	100	18	17	8	13.5	20	12	VDI3357－G－701	BG	65	150	35
─	175	150	VDI3357－G－702	200	35
3	125	225	200	VDI3357－G－703	250	35
150	275	250	VDI3357－G－704	300	35
2	─	125	100	28	27	15	17.5	26	16	VDI3357－G－711	125	150	60A
─	175	150	VDI3357－G－712	200	60A
3	125	225	200	VDI3357－G－713	250	60A
150	275	250	VDI3357－G－714	300	60A
2	─	125	100	33	32	─	150	60B
─	175	150	200	60B
3	125	225	200	250	60B
150	275	250	300	60B
