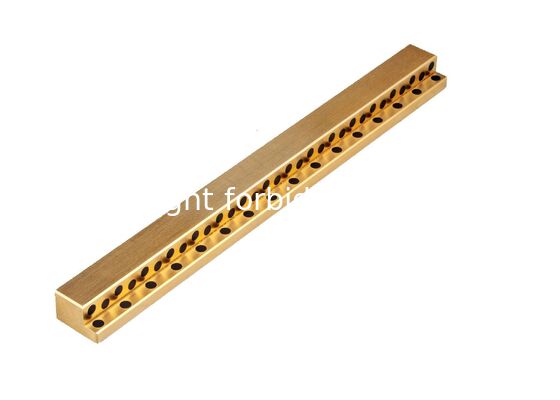

INW SGLX Self Lube Wear Plates SGLX Cam Slide Guide with Graphite long type
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Shape: | Angled Guide Gib | Application: | Cam Unit |
|---|---|---|---|
| Size: | Customized | Standard: | INW |
| Type: | Long Type | Hole: | Drill When Application |
| Highlight: | brass wear plate,self lubricating bushing material |
||
INW SGLX Self-Lube Wear Plates - Cam Slide Guide with Graphite (Long Type)
INW Self-Lube Wear Plates SGLX Cam Slide Guide with Graphite are precision-engineered components designed for industrial applications requiring reliable sliding motion with minimal maintenance.
Product Specifications
Type: Bronze with solid lubricant angled guide gib long type
Material: Bronze with solid lubricant, oilless lubricating
Execution: Sliding faces ground
Material: Bronze with solid lubricant, oilless lubricating
Execution: Sliding faces ground
Operation Range & Performance
| Lubricant Type | Lubricating Condition | Environment Condition | Max. Allowable Load (N/mm²) | Max. Allowable Sliding Speed (m/min) | Max. Allowable PV Value (N/mm²・m/min) | Operation Range Temperature (°C) |
|---|---|---|---|---|---|---|
| GR-1 | No lubrication | Atmosphere | 100 | 15 | 150 | -50 to +300 |
| GR-1 | Regular lubrication (Grease) | Atmosphere | 30 | 200 | - | -50 to +150 |
Physical Properties
| Property | Value |
|---|---|
| Specific Gravity | 7.9 |
| Hardness (HB) | 210 or more |
| Elongation (%) | 12 or more |
| Tensile Strength (N/mm²) | 755 or more |
| Linear Expansion Coefficient (×10⁻⁵/°C) | 1.9 |
Product Images
