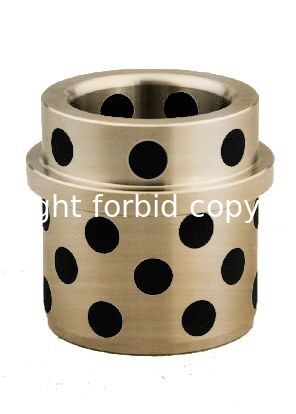

SEGB / SEGBK Ejector Guide Bushing SO#50SP2 Bronze With Graphite
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Features: | Low Resistance,Long Operating Life,Maintenance,High Precision | Material: | Bronze With Graphite |
|---|---|---|---|
| Standard: | SANKYO | Type: | FLANGE |
| Application: | Bearings | Product Material: | Bronze Alloy |
| Highlight: | SEGBK Ejector Solid Lube Bearings,Bronze Alloy Solid Lube Bearings,SEGBK Ejector Guide Bushing |
||
SEGB / SEGBK Ejector Guide Bushing SO#50SP2 Bronze With Graphite
Product Overview
SEGB/SEGBK guide bushings feature highly wear-resistant copper cast alloy with solid lubricant plugs evenly distributed across sliding surfaces. The high-strength copper alloy provides exceptional load-bearing capacity while the solid lubricant forms a low-friction film. Under technical dry running conditions, the bearing surface is designed with a thick running-in film that transfers solid lubricant to the counter material upon initial contact.
Material Features
- Maintenance-free operation with extended service life
- Suitable for high static and dynamic loads
- Low, smooth coefficient of friction without stick-slip effects
- Resistant to dirty environments, corrosion, impact loads, and edge loading
- Base material provides excellent shock-absorbing capacity
- Operates effectively across a wide temperature range
- Ideal for reciprocating, rotating, and oscillating movements with start frequency and difficult oil film formation
- Low wear rate ensures long service life
Applications
Construction Machinery
Transport Equipment
Pulp and Papermaking Machinery
Off-Shore Equipment
Technical Specifications
| Material | Base Bronze | 500SP: CuZn25Al6Fe3Mn3 |
|---|---|---|
| SL2 | Solid Graphite lubricant | |
| Density | 8.2g/cm³ | |
| Tensile Strength | ≥755N/mm² | |
| Anti-compact Tenacity | ≥400-500KJ/m³ | |
| Hardness | ≥200HB | |
| Max Load Pressure | 100N/mm² / 120N/mm²(500SP120) | |
| Speed Limit | 0.5m/s | |
| PV Value Limit | 1.65N/mm².m/s | |
| Friction Coefficient | Oil Lubrication: 0.03 | Dry Friction: 0.16 |
| Working Temperature | -50 to +300°C | |
