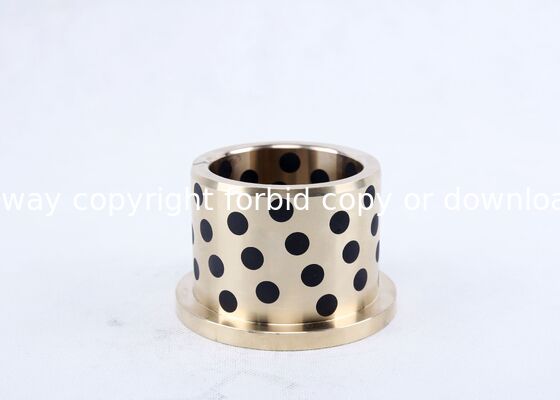

SNG71 Solid Lubricant Bearings , Brass Bushing Material Sleeve Bearing

SNG71 Solid Lubricant Bearings , Brass Bushing Material Sleeve Bearing

SNG71 Solid Lubricant Bearings , Brass Bushing Material Sleeve Bearing
SNG71 Solid Lubricant Bearings , Brass Bushing Material Sleeve Bearing SNG71 Solid Lubricant Bearings , Brass Bushing Material Sleeve Bearing

Large Image :  SNG71 Solid Lubricant Bearings , Brass Bushing Material Sleeve Bearing Get Best Price

Product Details:
Place of Origin: CHINA
Brand Name: INWAY
Certification: ISO9001
Model Number: SNG71
Payment & Shipping Terms:
Minimum Order Quantity: 1 PCS
Price: Negotiation
Packaging Details: Carton+pallet
Delivery Time: 5 work days or based on quantity
Payment Terms: L/C, T/T
Supply Ability: 100 tons/month
Detailed Product Description
Features: Low Resistance,Long Operating Life,Maintenance,High Precision Material: Bronze
Type: Flange Size: Standard Size,Customizable
Product Name: Brass Bush,Sleeve Bearing Lubricating: Oilless
Highlight:

Brass Solid Lube Bearings

,

Brass Solid Oil Bearings

,

SNG71 Solid Lubricant Bearings

SNG71 Solid Lubricant Bearings - Brass Bushing Material Sleeve Bearing
NAAMS Standard SNG71 guide bushing, European standard SO#50SP2 with graphite. These high-performance bearings are engineered for demanding industrial applications.
Product Overview
SNG61 guide bushings feature highly wear-resistant copper cast alloy with sliding surfaces evenly distributed with solid lubricant plugs. The high-strength copper alloy provides exceptional load-bearing capacity while the solid lubricant forms a low-friction film for optimal performance.
Technical Specifications
Type Straight
Bushing Material Steel or Bronze + Graphite
I.D. d(mm) 6
O.D. D(mm) 10
Maximum Allowable PV Value (N/mm²•m/s) 1.65
Maximum Allowable Load (N/mm²) 29
Temperature Range (°C) -40 to 150
Key Features
  • Solid lubricating bearing with Bronze Alloy SO#50SP2 + Graphite construction
  • Hardness: >250HB for exceptional durability
  • Self-lubricating and maintenance-free operation
  • High load capacity with excellent wear and abrasion resistance
  • Moderate corrosion resistance
  • Ideal for hardened mating materials
  • Specifically suitable for toggle mechanism bushings in injection molding machines
  • Insensitive to dirty environments
  • Resistant to shock loads and vibrations at slow speeds
  • Operates effectively with poor shaft surface finish
  • Good resistance to corrosive conditions
Material Construction
The solid casting bronze material is ideally suited for highly demanding applications in tough environments. The solid bronze body features drilled holes filled with solid graphite lubricant, enabling reliable operation in oilless environments. Optional oil grooves and holes can be machined for enhanced lubrication when grease is applied.
Available Types
Cylindrical bush, flanged bush, washer, strip, and custom configurations available.
Industry Applications
  • Continuous casting rolling machines
  • Mining machinery
  • Shipping machinery
  • Turbine systems
  • Injection machinery
  • Automotive molds
  • Construction machinery
  • Transport equipment
  • Pulp and papermaking machinery
  • Off-shore equipment
Product Image

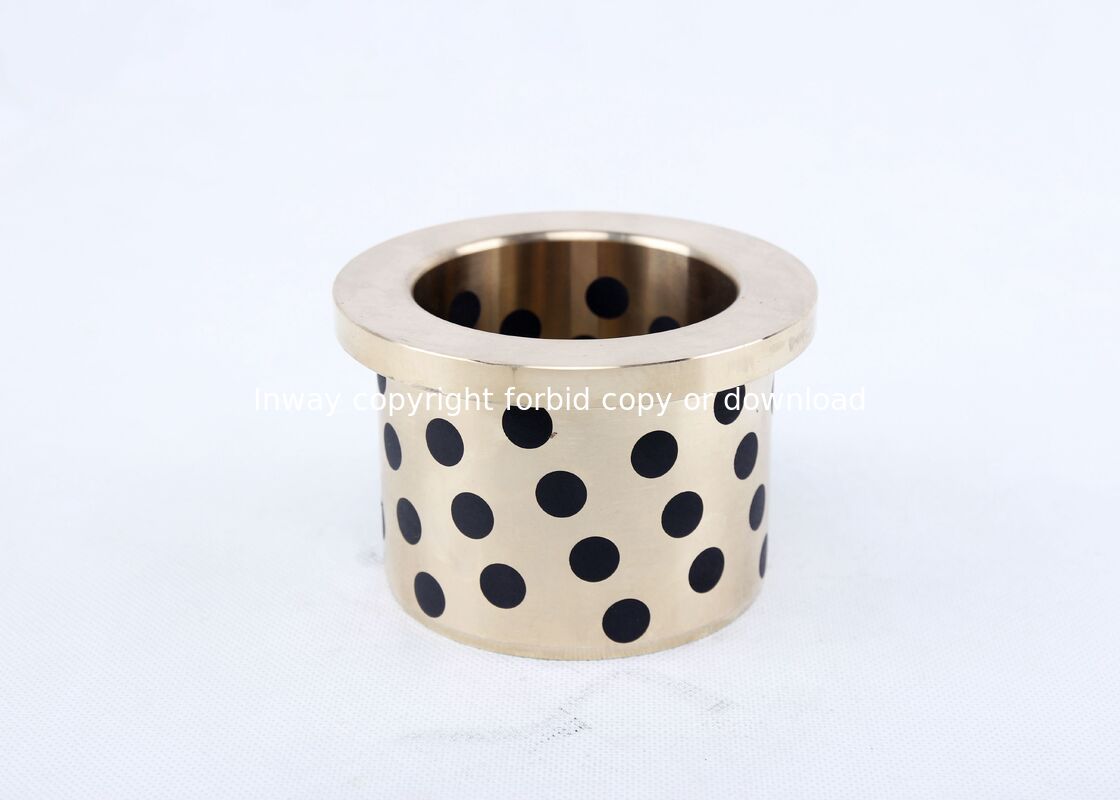

SNG71 Solid Lubricant Bearings , Brass Bushing Material Sleeve Bearing 0
Bushes can be used with radial or axial motion. Matching guide combinations and assembly guidelines with dimensional requirements and tolerances available upon request.
