Sankyo GPBW Solid Lubricant Bearings For Automotive Die Mould Stamping Mould
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Features: | Low Resistance,Long Operating Life,Maintenance,High Precision | Material: | Bronze With Graphite |
|---|---|---|---|
| Type: | Straight Type | Size: | Standard Size,Customizable |
| Standard: | JIS | Application: | Auto Suspension Parts |
| Highlight: | Stamping Mould Solid Lube Bearings,Stamping Mould Solid Lubricant Bearings,Automotive Die Mould Solid Lubricant Bearings |
||

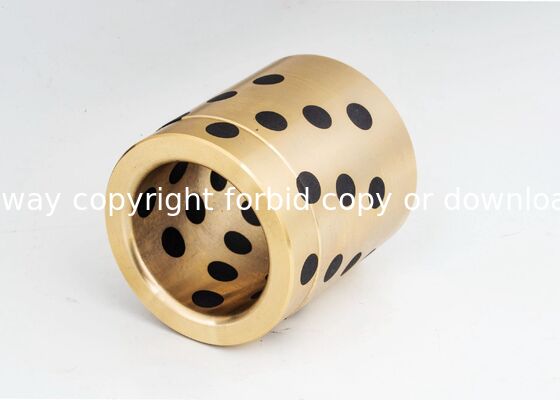

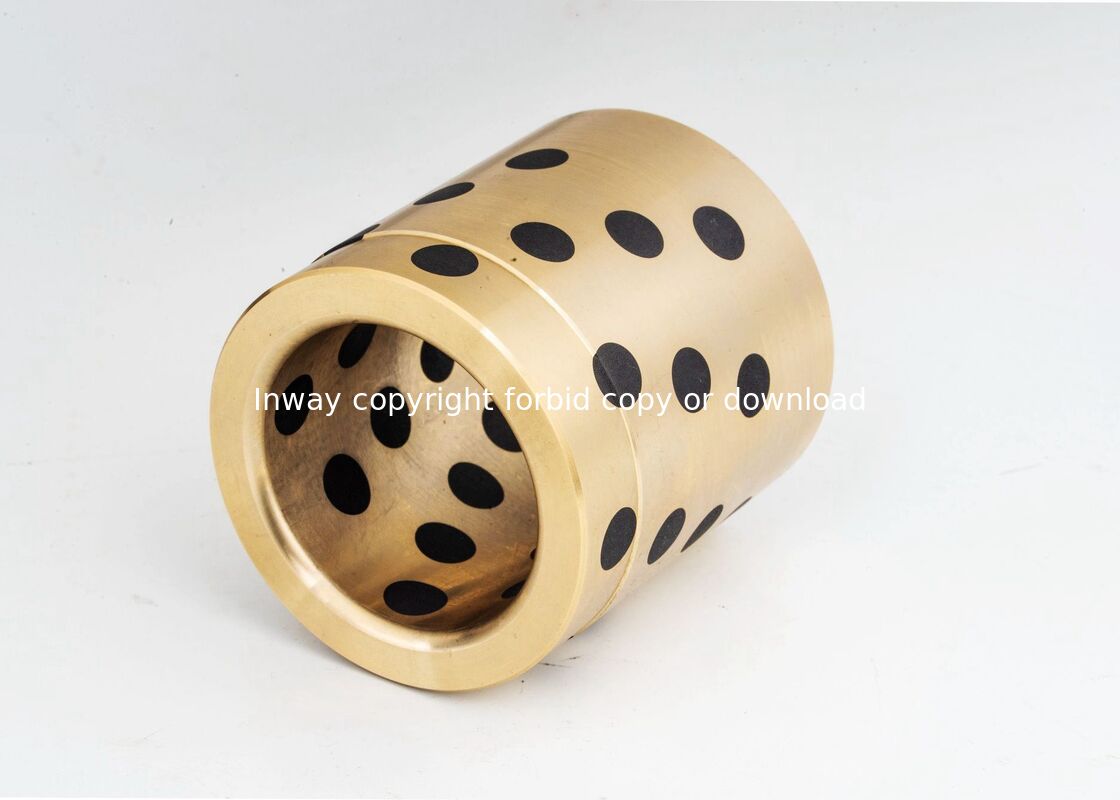

Sankyo GPBW Solid Lubricant Bearings For Automotive Die Mould Stamping Mould
Product Overview
GPBW / GPBF guide bushings, straight type, manufactured from bronze and steel materials with integrated solid lubricant technology.
Material Specifications:
GPBW = SO#50SP2 + graphites
GPBF = FC250 + graphites
GPBW = SO#50SP2 + graphites
GPBF = FC250 + graphites
Technical Features
GPBW/GPBF guide bushings feature highly wear-resistant copper cast alloy with sliding surfaces evenly embedded with solid lubricant plugs. The high-strength copper alloy provides exceptional load-bearing capacity while the solid lubricant forms a low-friction film during operation.
Under technical dry running conditions, the bearing surface is engineered with a thick running-in film that enables the solid lubricant to transfer to the counter material upon initial contact, ensuring optimal performance from the start.
Structural Components
① Solid lubricant film
② Solid lubricant plug
③ Bronze backing
Typical Applications
These bearings are widely used across various industrial sectors including:
- Continuous casting rolling machines
- Mining machinery
- Shipping machinery
- Turbines
- Injection machinery
- Automotive moulds and related applications
