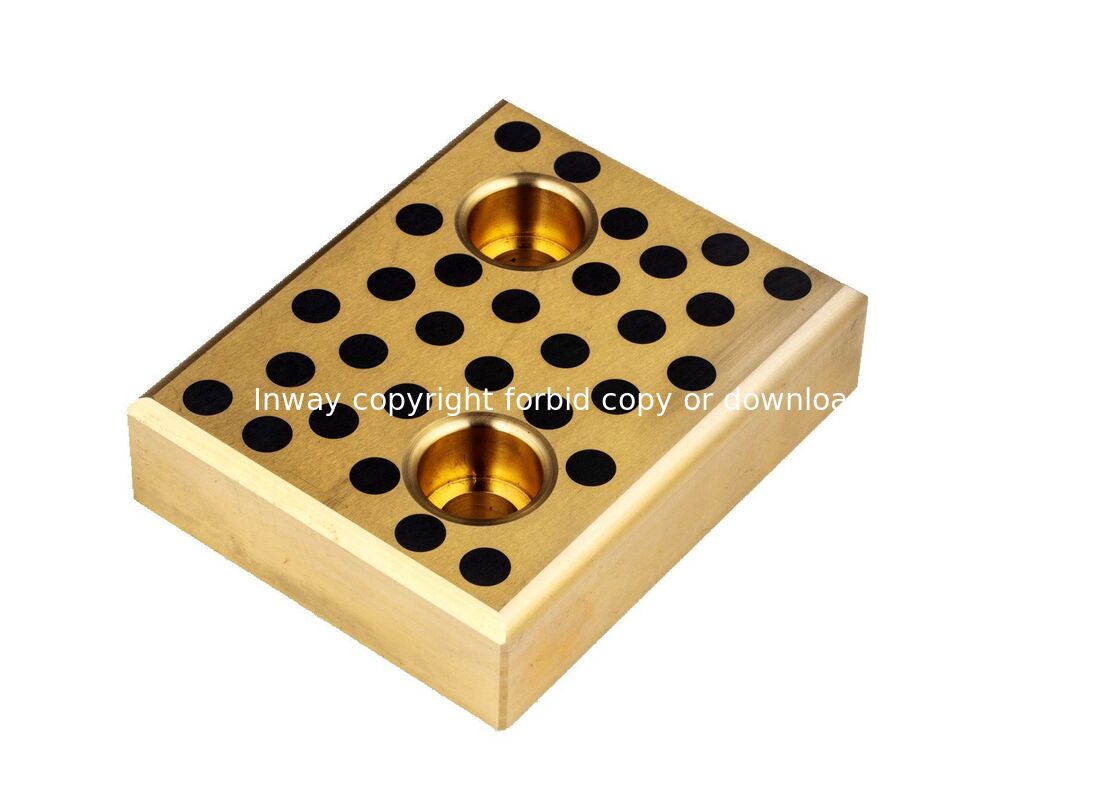

SNW010203 Self Lubricating Bearings , Brass Bushing Material NAAMS Slider Plate
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Material: | Bronze With Graphite | Thickness: | 20mm |
|---|---|---|---|
| Feature: | OEM Production,Long Life,oil Free | Lubrication: | Oil Free,Oil-free Self-lubricated |
| Standard: | NAAMS | Type: | Sliding,plate |
| Highlight: | self lubricating polymer,self lubricating bronze bushings,NAAMS Self Lubricating Bearings |
||

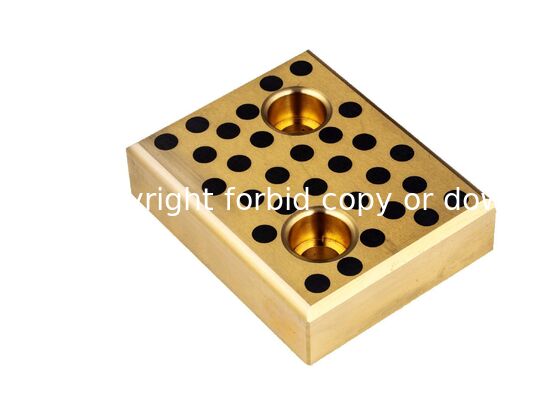

SNW010203 Self Lubricating Bearings, Brass Bushing Material NAAMS Slider Plate
SNW010203 Self Lubricating Bearings, Brass Bushing Material NAAMS Slider Plate
Product Features
- Simple, efficient design for widespread industrial applications; eliminates the need for complex oil lubrication systems, saving energy and reducing design complexity
- Utilizes specialized graphite with superior self-lubricating properties to deliver optimal performance and durability
- Maintains excellent wear resistance even in challenging conditions with reciprocating motion, rocking movement, and frequent starts and stops where oil film formation is difficult
Product Operation
- Normal operation results in a black or gray-black sliding surface due to the formation of a special solid lubricant film - this protective layer should not be removed
- Demonstrates superior wear resistance in applications where oil film formation is minimal
- For dies stored long-term, clean any rust from sliding surfaces and apply grease before reuse
Product Application
- Delivers high performance under high-load and low-speed operating conditions
- Self-lubricating bearing with embedded solid lubricant and metal base conforming to ASTM Standards (C86300)
- Operates effectively without requiring additional lubrication
Types of Wear Plates
| Material | Thickness | Code No. | Features |
|---|---|---|---|
| FC250 Graphite |
20 | SESF | Excellent sliding performance at low load and medium speed |
| FC250 Graphite |
20 | SESFT | Excellent sliding performance at low load and medium speed |
| SS400 Copper Powder sintering |
20 | SOX | Excellent sliding performance at low/medium load and medium speed. With the sintered layer using copper based powder and graphite, occurrence of seizure is very limited |
| SS400 Copper Powder sintering |
20 | SOXT | Excellent sliding performance at low/medium load and medium speed. With the sintered layer using copper based powder and graphite, occurrence of seizure is very limited |
| S45C | 10 | TWX | |
| S45C | 10 | TWXT | |
| Copper alloy Graphite |
20 | SESW | Excellent in load resistance and wear resistance. Good performance is shown in reciprocating and frequent starts and stops. Excellent sliding performance at high load and low speed |
| Copper alloy Graphite |
20 | SESWT | Excellent in load resistance and wear resistance. Good performance is shown in reciprocating and frequent starts and stops. Excellent sliding performance at high load and low speed |
| Copper alloy Graphite |
10 | TWP | Excellent in load resistance and wear resistance. Good performance is shown in reciprocating and frequent starts and stops. Excellent sliding performance at high load and low speed |
| Copper alloy Graphite |
10 | TWPT | Excellent in load resistance and wear resistance. Good performance is shown in reciprocating and frequent starts and stops. Excellent sliding performance at high load and low speed |
| Copper alloy Graphite |
5 | UWP | Excellent in load resistance and wear resistance. Good performance is shown in reciprocating and frequent starts and stops. Excellent sliding performance at high load and low speed |
| Steel (S45C) Graphite |
20 | FRP | Since the surface hardness is HRC40 or more, it is excellent in wear resistance |
| Steel (SKS3) | 20 | TSP | Since the surface hardness is HRC58 or more, it is greatly excellent in wear resistance |
