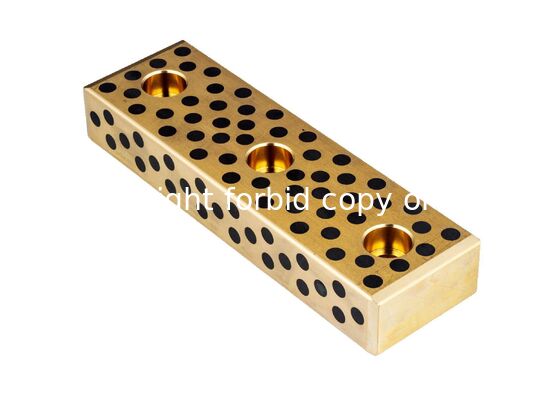

Cam Slid Plate SCSDP Self Lubricating Bearings With Two Surface Graphite Plugs
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Material: | Bronze With Graphite | Thickness: | 20mm |
|---|---|---|---|
| Feature: | OEM Production,Long Life,oil Free | Lubrication: | Oil Free,Oil-free Self-lubricated |
| Standard: | JIS | Type: | Sliding,plate |
| Highlight: | self lubricating polymer,self lube bushings,Two Graphite Plugs Self Lubricating Bearings |
||

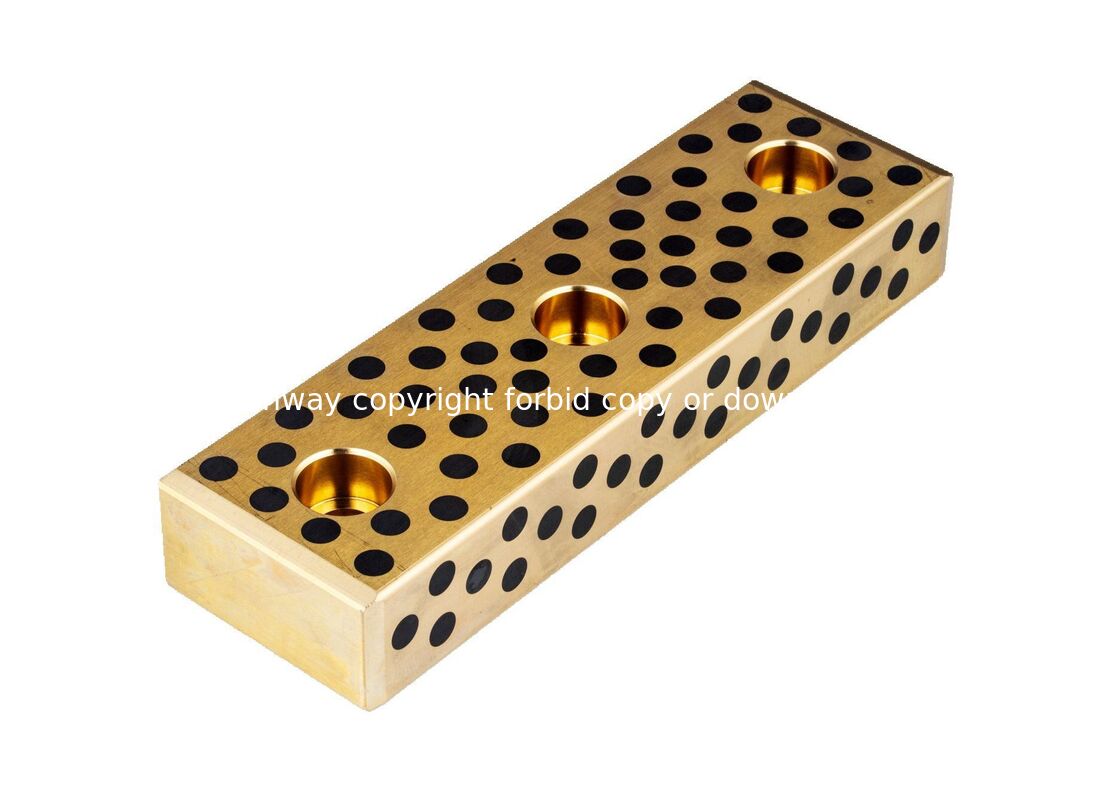

Cam Slid Plate SCSDP Self Lubricating Bearings With Two Surface Graphite Plugs
Product Overview
SCSDP self-lubricating cam slid plate bearings feature two surface graphite plugs for superior performance in demanding industrial applications without requiring external lubrication.
Key Features
- Operates without oil through self-lubricating design
- Superior performance reduces operational costs
- Maintains clean operating environment by eliminating lubricant discharge
- Excellent wear resistance in challenging conditions including reciprocating, rocking, and start-stop movements
Operation Guidelines
- Ensure sliding surfaces are free of foreign matter such as metal chips or dirt during die operation
- Demonstrates high performance under medium-load and medium-speed operations
- Superior heat resistance for demanding applications
Application Benefits
- Excellent performance under high-load and low-speed operations
- Self-lubricating bearing with embedded solid lubricant and metal base conforming to ASTM Standards (C86300)
- Serviceable without requiring external lubrication
Sliding Characteristics (No Lubrication)
| Hardened Surface with HRC25 or More | Heat Treated Steel or FC Casting Less than HRC25 | Raw Material (SS400) | ||||||
| P (surface pressure) N/mm² |
V (sliding speed) m/min |
PV value | P (surface pressure) N/mm² |
V (sliding speed) m/min |
PV value | P (surface pressure) N/mm² |
V (sliding speed) m/min |
PV value |
|---|---|---|---|---|---|---|---|---|
| 5 | 10 | 30 | 5 | 10 | 30 | 5 | 10 | 30 |
| 50 | 30 | 100 | 25 | 30 | 60 | 25 | 30 | 50 |
| 100 | 15 | 150 | 50 | 15 | 150 | 25 | 15 | 150 |
Wear plate types: FC Type, Sintered Type, Bronze Type
