SOPW Self Lubricating Bronze Bushings Sliding Type For Mould Die Component
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Material: | Bronze With Graphite | Thickness: | 20mm |
|---|---|---|---|
| Lubrication: | Oil Free,Oil-free Self-lubricated | Standard: | JIS |
| Type: | Sliding,plate | Application: | Mould Die Component |
| Highlight: | self lubricating polymer,self lubricating bronze bushings,Mould Die Self Lubricating Bearings |
||

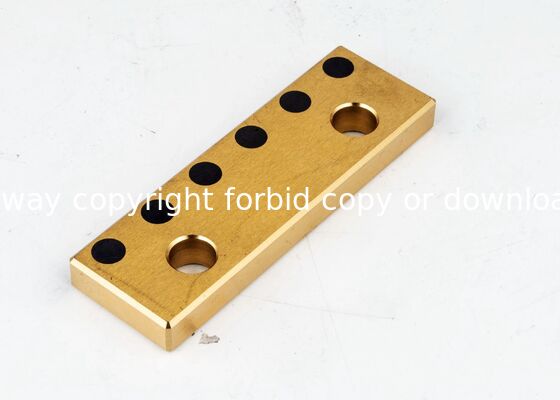

SOPW Self Lubricating Bronze Bushings Sliding Type For Mould Die Component

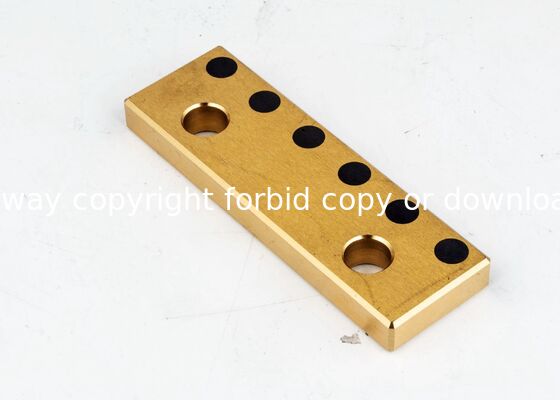

SOPW Self Lubricating Bronze Bushings Sliding Type For Mould Die Component
Product Features
- Metal base selection based on chemical and corrosion resistance requirements for superior performance
- Maintains excellent properties even under high load and low rotating speed conditions
- Provides exceptional wear resistance in applications with reciprocating, rocking movements, and frequent starting/stopping where oil film formation is difficult
Product Operation
- Sliding surface develops black or black-gray film from special solid lubricant during operation - this is normal and should not be removed
- Suitable for use in seawater environments
- Excellent heat resistance capabilities
Product Application
- Delivers high performance in high-load, low-speed operating conditions
- Self-lubricating bearing with embedded solid lubricant and metal base conforming to ASTM Standards (C86300)
- Operates effectively without requiring additional lubrication
Sliding Characteristics (No Lubrication)
| Hardened Surface with HRC25 or More | Heat Treated Steel or FC Casting Less than HRC25 | Raw Material (SS400) | ||||||
|---|---|---|---|---|---|---|---|---|
| P (surface pressure) N/mm² | V (sliding speed) m/min | PV value | P (surface pressure) N/mm² | V (sliding speed) m/min | PV value | P (surface pressure) N/mm² | V (sliding speed) m/min | PV value |
| 5 | 10 | 30 | 5 | 10 | 30 | 5 | 10 | 30 |
| 50 | 30 | 100 | 25 | 30 | 60 | 25 | 30 | 50 |
| 100 | 15 | 150 | 50 | 15 | 150 | 25 | 15 | 150 |
