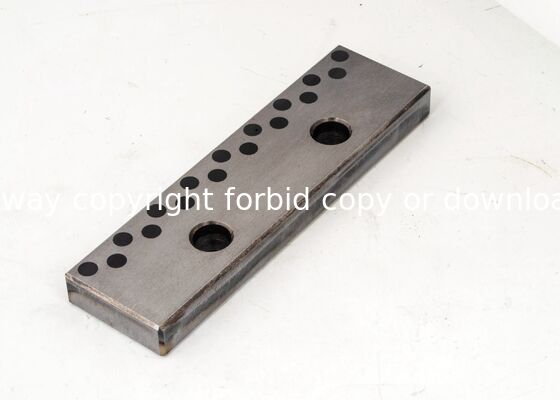

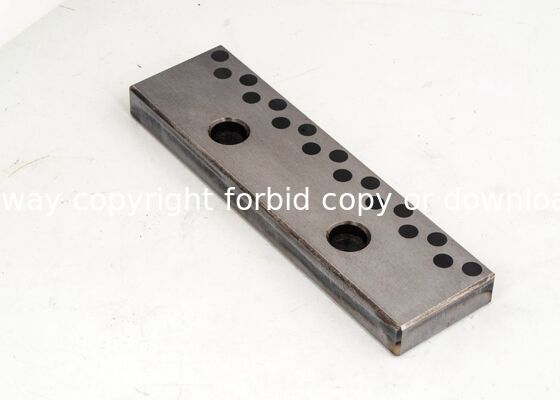

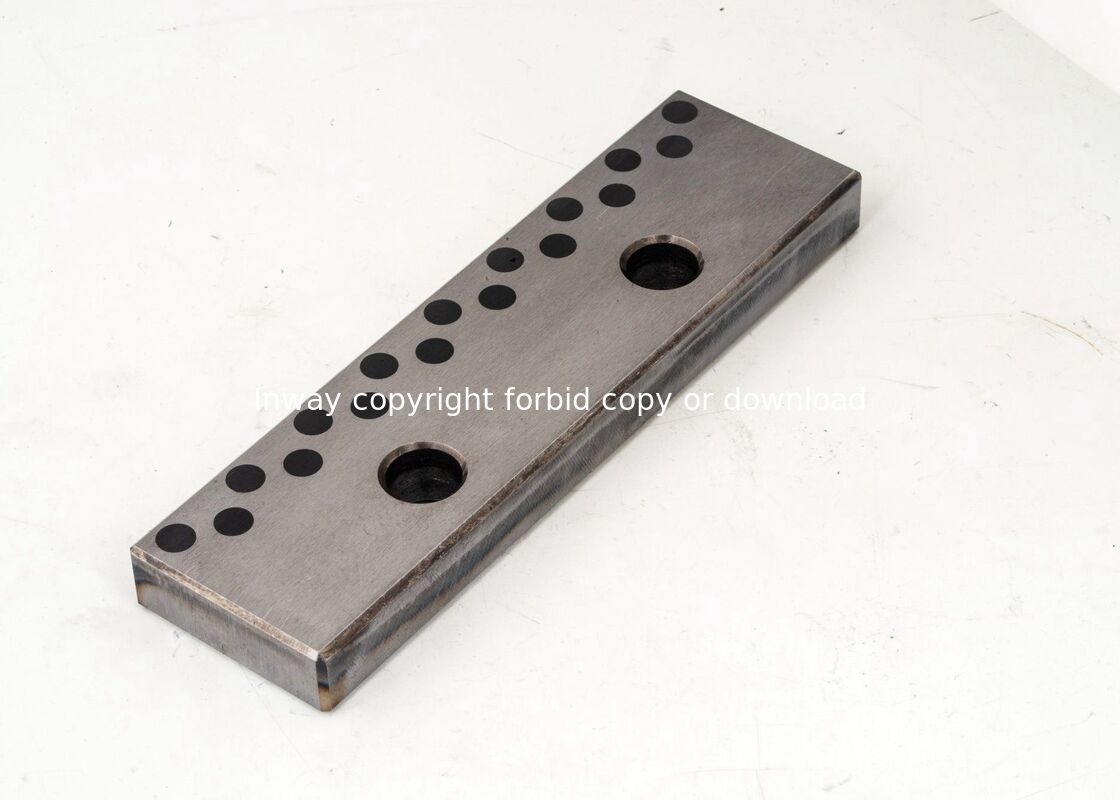

Cam Slider Plate Self Lubricating Bearings Steel With Graphite Pluged
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Material: | Steel With Graphite | Thickness: | 20mm |
|---|---|---|---|
| Feature: | OEM Production,Long Life,oil Free | Lubrication: | Oil Free,Oil-free Self-lubricated |
| Standard: | JIS | Type: | Sliding,plate |
| Highlight: | self lubricating bronze bushings,self lube bushings,20mm Thickness Self Lubricating Bearings |
||
Cam Slider Plate Self-Lubricating Bearings - Steel with Graphite Plug
High-performance self-lubricating cam slider plate bearings designed for demanding industrial applications where traditional lubrication is challenging.
Product Features
- Exceptional wear resistance in applications with reciprocating, rocking movements, and frequent start-stop cycles where oil film formation is difficult
- Superior friction resistance and self-lubrication properties prevent scoring and seizure under harsh operating conditions
- Cost-effective performance reduces maintenance expenses and eliminates lubricant contamination in clean environments
Operation Guidelines
- Normal operation produces a black or black-gray film of special solid lubricant on sliding surfaces - do not remove this protective film
- Ensure sliding surfaces remain free of foreign matter such as metal chips or dirt during die operation
- Excellent heat resistance for high-temperature applications
Application Benefits
- Delivers high performance under high-load and low-speed operating conditions
- Manufactured to ASTM C86300 standards with embedded solid lubricant in metal base material
- Operates effectively without requiring additional lubrication
Sliding Characteristics (No Lubrication)
Performance specifications for various mating materials
| Mating Material | Hardened Surface HRC25+ | Heat Treated Steel or FC Casting < HRC25 | Raw Material (SS400) | ||||||
|---|---|---|---|---|---|---|---|---|---|
| P (N/mm²) | V (m/min) | PV Value | P (N/mm²) | V (m/min) | PV Value | P (N/mm²) | V (m/min) | PV Value | |
| FC Type | 5 | 10 | 30 | 5 | 10 | 30 | 5 | 10 | 30 |
| Sintered Type | 50 | 30 | 100 | 25 | 30 | 60 | 25 | 30 | 50 |
| Bronze Type | 100 | 15 | 150 | 50 | 15 | 150 | 25 | 15 | 150 |
