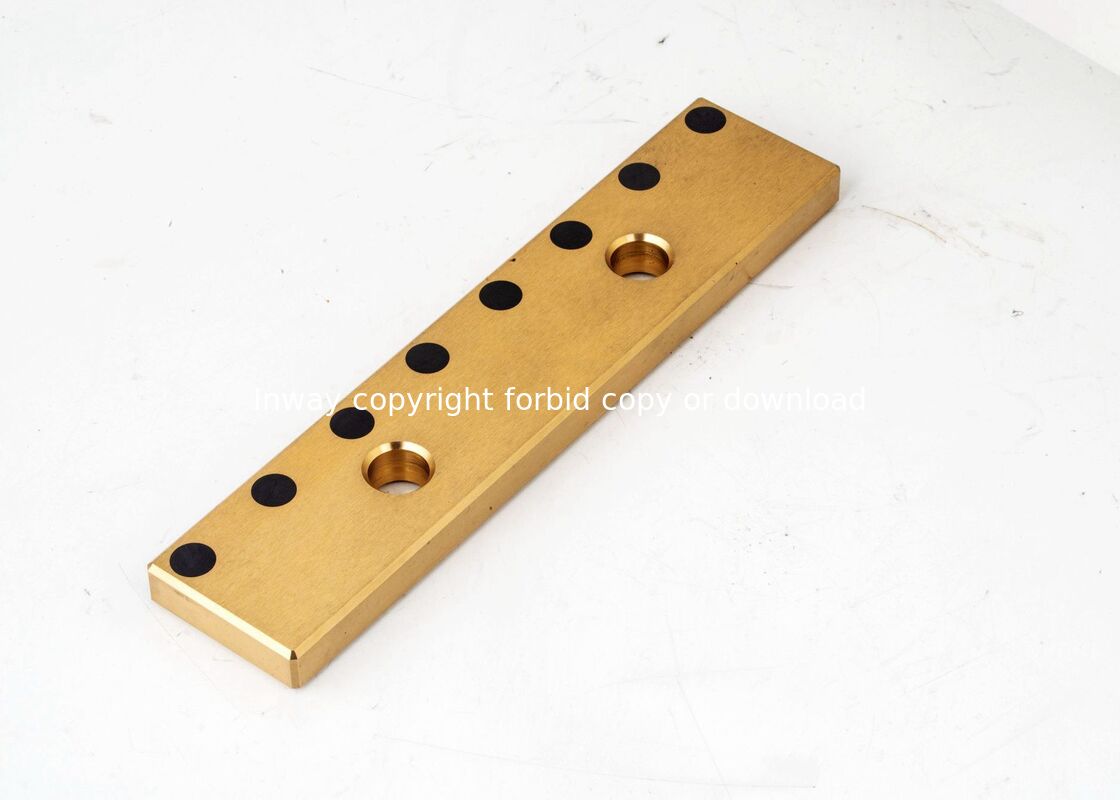

Bronze Bushing Lubrication Copper Alloy Graphite Pluged 20mm Thickness
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Material: | Bronze With Graphite | Thickness: | 20mm |
|---|---|---|---|
| Feature: | OEM Production,Long Life,oil Free | Lubrication: | Oil Free,Oil-free Self-lubricated |
| Standard: | JIS | Type: | Sliding,plate |
| Highlight: | self lubricating polymer,self lube bushings,20mm Thickness Bronze Bushing Lubrication |
||
Bronze Bushing Lubrication Copper Alloy Graphite Pluged 20mm Thickness
This bronze bushing features copper alloy construction with graphite plugs and 20mm thickness, designed for superior self-lubricating performance in demanding industrial applications.
Product Features
- Self-lubricating operation without requiring oil, enabled by the linear coefficient expansion of solid lubricant exceeding that of the metal base
- Excellent wear resistance performance even in challenging conditions with reciprocating, rocking movements, and frequent starting/stopping where oil film formation is difficult
- Eliminates the need for oiling equipment while offering customizable designs to meet specific application requirements
Product Operation
- High-performance operation under high-load and low-speed conditions
- Serviceable without lubrication requirements
- Suitable for high-temperature applications
Product Application
- Optimal performance in high-load, low-speed operating conditions
- Self-lubricating bearing with embedded solid lubricant and metal base conforming to ASTM Standards (C86300)
- Operational without lubrication needs
Sliding Characteristics (Lubricating Condition: No Lubrication)
| Wear Plate | Hardened Surface with HRC25 or More | Heat Treated Steel or FC Casting Less than HRC25 | Raw Material (SS400) | ||||||
|---|---|---|---|---|---|---|---|---|---|
| P (N/mm²) | V (m/min) | PV Value | P (N/mm²) | V (m/min) | PV Value | P (N/mm²) | V (m/min) | PV Value | |
| FC Type | 5 | 10 | 30 | 5 | 10 | 30 | 5 | 10 | 30 |
| Sintered Type | 50 | 30 | 100 | 25 | 30 | 60 | 25 | 30 | 50 |
| Bronze Type | 100 | 15 | 150 | 50 | 15 | 150 | 25 | 15 | 150 |
