SOD Self Lubricating Bearings Plastic Mold Casting Bronze With Graphite
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Material: | Casting Bronze With Graphite | Thickness: | 20mm |
|---|---|---|---|
| Feature: | OEM Production,Long Life,oil Free | Lubrication: | Oil Free,Oil-free Self-lubricated |
| Standard: | JIS | Type: | Sliding,plate |
| Highlight: | self lubricating polymer,self lube bushings,Plastic Mold Self Lubricating Bearings |
||

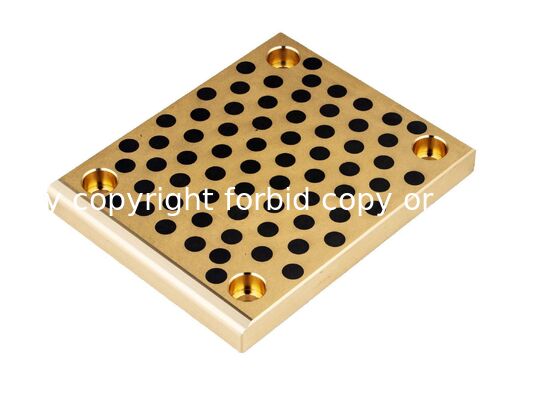

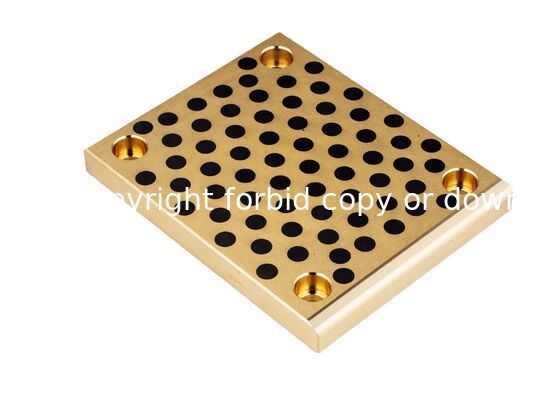

SOD Self Lubricating Bearings Plastic Mold Casting Bronze With Graphite
Self-lubricating bearings with embedded graphite solid lubricant in bronze casting, designed for maintenance-free operation across various industrial applications.
Product Features
- Simplified design eliminates need for oil lubrication systems, reducing energy consumption and design complexity
- Eliminates regular oil maintenance, preventing environmental contamination and reducing operational costs
- Superior chemical and corrosion resistance with stable molecular structure using special graphite and PTFE lubricants
Product Operation
- Normal black or gray film formation on sliding surfaces during operation - do not remove
- Suitable for use in seawater environments
- Excellent heat resistance properties
Product Application
- High-performance operation under high-load and low-speed conditions
- Manufactured to ASTM C86300 standards with embedded solid lubricant in metal base
- Maintenance-free operation without external lubrication requirements
Sliding Characteristics (No Lubrication)
| Mating Material | Hardened Surface with HRC25 or More | Heat Treated Steel or FC Casting Less than HRC25 | Raw Material (SS400) | ||||||
| P (surface pressure) N/mm² | V (sliding speed) m/min | PV value | P (surface pressure) N/mm² | V (sliding speed) m/min | PV value | P (surface pressure) N/mm² | V (sliding speed) m/min | PV value | |
| FC Type | 5 | 10 | 30 | 5 | 10 | 30 | 5 | 10 | 30 |
| Sintered Type | 50 | 30 | 100 | 25 | 30 | 60 | 25 | 30 | 50 |
| Bronze Type | 100 | 15 | 150 | 50 | 15 | 150 | 25 | 15 | 150 |
