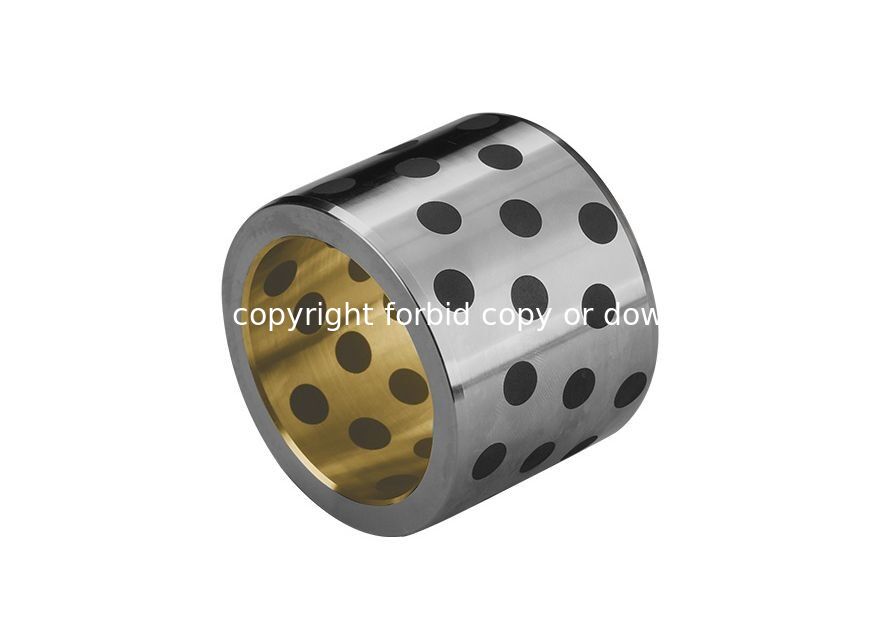

JF806 Steel Sintered Metal Bearings CuZn25Al6Fe3Mn3 Solid Lubricant Plugs
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Application: | Engine Bearing | Size: | Standard |
|---|---|---|---|
| Standard: | DIN1494 | Material: | Steel+CuZn25Al6Fe3Mn3 |
| Type: | With Graphite Plug | Technical: | Wrapped Bronze |
| Highlight: | bimetal bushing,bimetal bearing bushes |
||
JF806 Steel Sintered Metal Bearings CuZn25Al6Fe3Mn3 Solid Lubricant Plugs
JF-806 bimetal bearing is manufactured using Steel + Bronze + Solid lubricant construction, delivering superior performance in demanding industrial applications.
Material Features
The microstructure analysis reveals intermetallic diffusion between 3μ to 5μ during the casting process, ensuring perfect adhesion between steel and bronze layers. This diffusion creates mechanical properties at the interface that exceed those of bronze alone.
- Superior mechanical properties with partial load transfer to steel backing
- Thin bronze layers enable closed thermal expansion characteristics
- Maintains accurate and constant mechanical clearance during heating processes
- Ideal for applications requiring dimensional stability under thermal cycling
Technical Specifications
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Max. Static Load | 250 N/mm² | Alloy Hardness | HB 60-100 |
| Dynamic Load | 140 N/mm² | Operating Temperature | -40℃ to +250℃ |
| Coefficient of Friction | 0.05-0.12 | Max. Speed | 2.5 m/s |
| Thermal Conductivity | 60 W/(m·K) | Max. PV Value | 2.8 N/mm²·m/s |
| Shear Strength | 170 N/mm² | Coefficient of Thermal Expansion | 14×10⁻⁶ K⁻¹ |
Technical diagram showing JF806 bearing construction
Application example of JF806 bearings in industrial equipment
