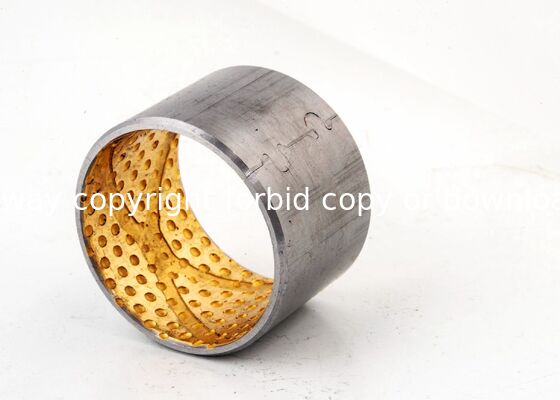

ISO 3547 Bimetal Bearing Bushes JF805 Wrapped Bronze With X Type Oil Groove
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Application: | Engine Bearing | Size: | Standard |
|---|---|---|---|
| Standard: | DIN1494 | Material: | Steel+CuSn6Ni9 |
| Type: | X Type | Technical: | Wrapped Bronze |
| Highlight: | bimetal bushing,bimetal bearing bushes |
||
ISO 3547 Bimetal Bearing Bushes JF805
Wrapped Bronze with X Type Oil Groove for superior lubrication and performance in demanding industrial applications.
Product Overview
JF-804 sliding layer can be machined with lubricating grooves and/or grease indents. Features very good corrosion resistance and is constructed with Steel+CuSn6Ni9 material composition.
Applications
Automotive Applications
McPherson struts and shock absorbers, doors, bonnets and tailgate hinges, steering columns, clutches, gearbox selector fork guides, wiper arms, power steering pumps, pedal bushes, ABS equipment, etc.
Industrial Applications
Aerospace, agricultural equipment, construction equipment, material handling equipment, forming machines (metal, plastic and rubber), office equipment, medical and scientific equipment, packaging equipment, pneumatic and hydraulic cylinders, pumps and motors, railroad and tramways, textile machinery, valves, etc.
Specific Component Applications
Bimetal Bushings: King pin, Spring eyes, Trunion, Piston pin, Rocker arm, Connecting rod, Transmission system, Distributor, Clutch, pilot, Starter, Generator, Oil pump, gear pump, Water pump, Cam shaft, Intermediate shaft, Balance shaft.
Bimetal Washers: Main bearing, Cam shaft, Crank shaft, Distributor, Transmission system, Oil pump, Ram pump, vane pump and other applications.
Engine Bearings: Cam shaft, Crank (main), Con. Rod (big end) and other engine bearing applications.
Bimetal Washers: Main bearing, Cam shaft, Crank shaft, Distributor, Transmission system, Oil pump, Ram pump, vane pump and other applications.
Engine Bearings: Cam shaft, Crank (main), Con. Rod (big end) and other engine bearing applications.
Key Features
- Wear Prevention: Dual-layer design disperses strength evenly throughout the bearing unit, preventing weak spots and wear through for reliable long-term performance.
- Debris Protection: Multiple layers provide increased surface area to resist debris contamination, with secondary lubrication protection in case of liner wear.
- Enhanced Lubrication: Dual-layer design provides extra lubrication protection, reducing heat generation and friction for extended service life.
- Durability & Strength: Sintered bearing liners offer varying levels of durability and fatigue strength suitable for different applications including automotive engines and transmissions.
Technical Specifications
| Parameter | Value |
|---|---|
| Max. Load (Static) | 250 N/mm² |
| Max. Load | 140 N/mm² |
| Alloy Hardness | HB 60-100 |
| Temperature Range | -40℃ to +250℃ |
| Coefficient of Friction | 0.05-0.12 |
| Max. Speed | 2.5 m/s |
| Thermal Conductivity | 60 W(m*k)-1 |
| Max. PV | 2.8 N/mm²*m/s |
| Shear Strength | 170 N/mm² |
| Coefficient of Thermal Expansion | 14*10-6 K-1 |
