Bimetal Bushing JF804 Wrapped Bronze Steel And CuSn6Ni9 Material With Lock Ring
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Application: | Engine Bearing | Size: | Standard |
|---|---|---|---|
| Standard: | DIN1494 | Material: | Steel+CuSn6Ni9 |
| Type: | Lock Type | Technical: | Wrapped Bronze |
| Highlight: | bimetal bushing,bimetal bearing bushes |
||

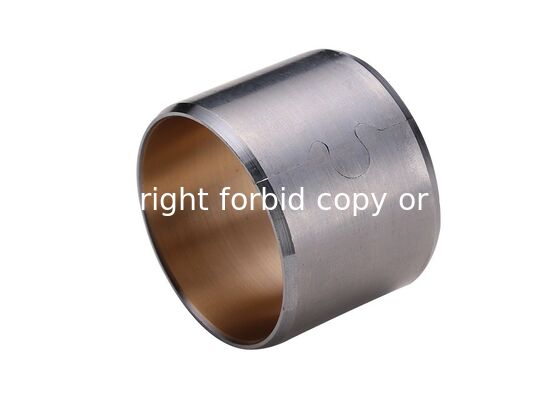

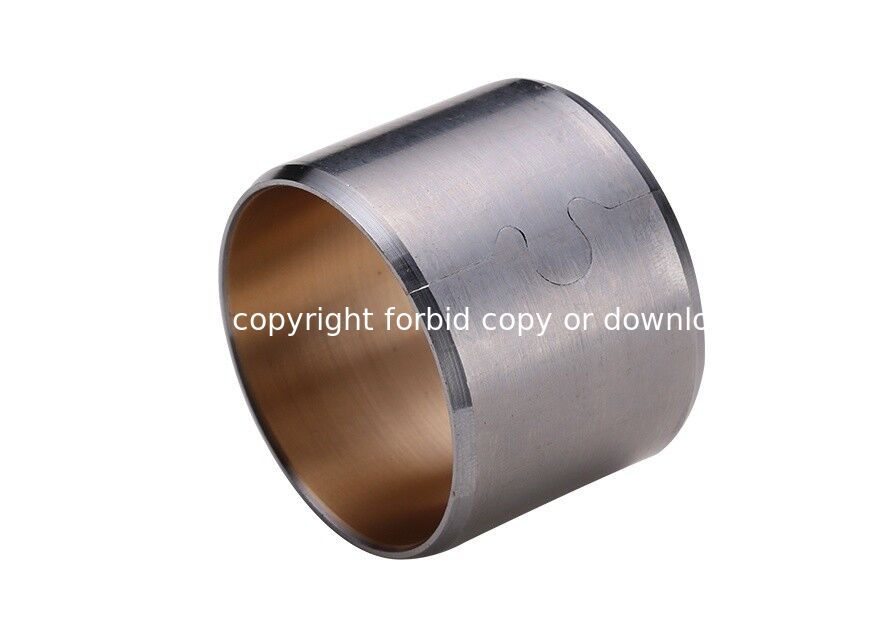

Bimetal Bushing JF804 Wrapped Bronze Steel And CuSn6Ni9 Material With Lock Ring
JF-804 bimetal bushings feature a sliding layer that can be machined with lubricating grooves and/or grease indents. These components offer excellent corrosion resistance and are constructed from steel with CuSn6Ni9 bronze alloy.
Applications
Automotive Applications
McPherson struts and shock absorbers, doors, bonnets and tailgate hinges, steering columns, clutches, gearbox selector fork guides, wiper arms, power steering pumps, pedal bushes, ABS equipment, and more.
Industrial Applications
Aerospace, agricultural equipment, construction equipment, material handling equipment, forming machines (metal, plastic and rubber), office equipment, medical and scientific equipment, packaging equipment, pneumatic and hydraulic cylinders, pumps and motors, railroad and tramways, textile machinery, valves, and more.
Specific Bimetal Bushing Applications
King pin, Spring eyes, Trunion, Piston pin, Rocker arm, Connecting rod, Transmission system, Distributor, Clutch, pilot, Starter, Generator, Oil pump, gear pump, Water pump, Cam shaft, Intermediate shaft, Balance shaft.
Bimetal Washer Applications
Main bearing, Cam shaft, Crank shaft, Distributor, Transmission system, Oil pump, Ram pump, vane pump and other applications.
Engine Bearing Applications
Cam shaft, Crank (main), Con. Rod (big end) and other engine bearing applications.
Product Features
- Inner Liner Prevents Wear Through: Dual-layer design disperses strength evenly throughout the bearing unit, preventing weak spots and wear through for more reliable long-term performance.
- Enhanced Debris Protection: Multiple layers provide increased surface area to resist debris contamination, with secondary lubrication protection in case of liner wear.
- Double Lubrication Protection: Dual design provides extra lubrication protection, reducing heat generation and friction for extended service life.
- Superior Durability and Strength: Sintered bearing liners offer varying levels of durability and fatigue strength suitable for different applications, such as TriSteel steel-backed bearings with CuPb30 liners providing 3600 psi load capacity, speeds to 2900 fpm, and temperature range of -40 to +325°F.
Technical Specifications
| Parameter | Value |
|---|---|
| Max. Static Load | 250 N/mm² |
| Max. Dynamic Load | 140 N/mm² |
| Alloy Hardness | HB 60-100 |
| Temperature Range | -40℃ to +250℃ |
| Coefficient of Friction | 0.05-0.12 |
| Max. Speed | 2.5 m/s |
| Thermal Conductivity | 60 W(m*k)-1 |
| Max. PV | 2.8 N/mm²*m/s |
| Shear Strength | 170 N/mm² |
| Coefficient of Thermal Expansion | 14*10⁻⁶ K⁻¹ |
