INWAY Bimetal Bearings DIN1494 Standard Type CuPb10Sn10 Or CuSn6Zn6Pb3 Lining Layer
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Application: | Engine Bearing | Size: | Standard |
|---|---|---|---|
| Standard: | DIN1494 | Material: | Steel+CuPb10Sn10 |
| Type: | Oil Groove | Technical: | Wrapped Bronze |
| Highlight: | bimetal bushing,bimetal bearing bushes |
||

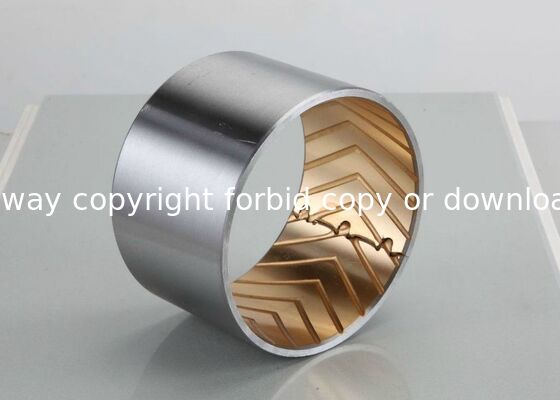

INWAY Bimetal Bearings DIN1494 Standard Type
INWAY Bimetal Bearings DIN1494 Standard Type feature CuPb10Sn10 or CuSn6Zn6Pb3 lining layers. The JF-800 bimetal bearing is manufactured by sintering steel with these copper-lead alloy linings, delivering superior performance in medium-speed, high-impact applications. Ideal for heavy-duty truck balance suspensions, bulldozer track rollers, and automotive chassis systems.
Material Specifications
| Lead Bronze Alloy | CuPb10Sn10 or CuSn6Zn6Pb3 |
| Load Capacity | 65N/mm² |
| Alloy Hardness | HB70~100 |
| Maximum Temperature | 260℃ |
Key Features
- Wear Prevention: Dual-layer design ensures uniform material strength distribution, eliminating weak spots and preventing wear-through for extended service life.
- Debris Protection: Enhanced surface area resists contamination from machining debris and environmental particles, with secondary lubrication protection.
- Double Lubrication: Additional lubrication layer reduces heat generation and friction, optimizing performance and extending bearing lifespan.
- Enhanced Durability: Sintered bearing liners provide superior fatigue strength and load capacity for demanding industrial applications.
Technical Data
Max. Static Load: 250N/mm²
Dynamic Load: 140N/mm²
Temperature Range: -40℃ to +250℃
Coefficient of Friction: 0.05~0.12
Maximum Speed: 2.5m/s
Thermal Conductivity: 60W(m·k)⁻¹
Maximum PV: 2.8N/mm²·m/s
Shear Strength: 170N/mm²
Coefficient of Thermal Expansion: 14×10⁻⁶K⁻¹
