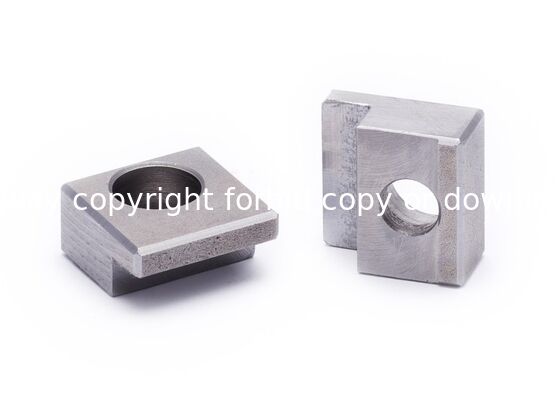

Clamps For Guide Bushing DIN9832 VDI-KL Applied For DIN9834 Guide Bushes NAAMS
These retaining clips are specifically designed to fixate DIN 9834 / ISO 9448 guide bushes, ensuring secure and reliable positioning in industrial applications.
Product Specifications
Bushing according to DIN 9834 GUIDE BUSHING WF 750/1A. Bushings acc. DIN 9834 with clamps acc. DIN 9832.
• Permissible deviations for dimensions without tolerance specification as per DIN ISO 2768-m
• Mating material condition: Hardness min HRC35, Surface roughness: Ra 0.8μm or less
• Mating material condition: Hardness min HRC35, Surface roughness: Ra 0.8μm or less
Key Advantages
- Total Self-Lubricating: No oil or grease required The self-lubricating features allow bearings to be used where oiling is difficult, expensive to implement, and where grease/oil cannot be used. Excellent lubrication is achieved even under high loads at low speeds.
- Excellent Wear Resistance Excellent wear resistance is achieved under severe working conditions, such as heavy load, low velocity, reciprocating, oscillating and intermittent motions where the formation of oil film is difficult.
- Low Coefficient of Friction: 0.04 to 0.2 typical Self-lubrication with specially embedded solid lubricants reduces friction.
- Wide Operating Temperature Ranges: -40°C to +300°C Superior performance is exhibited under high and low temperature conditions.
- Corrosion and Chemical Resistance Performance is not affected by water and caustic chemicals.
- Designed to Exceed Your Requirements High precision products with close tolerances.
- Cost Competitive Maintenance, replacement, and end-item downtime cost reduced due to the exceptional service life compared to similar self-lubricating products.
Technical Specifications Table
| Catalog No.(Type) | W | L | T | L1 | L2 | t | d | d1 | h | Applicable post diameter |
|---|---|---|---|---|---|---|---|---|---|---|
| VDI-KL-6 (6) | 20 | 20 | 10 | 7.5 | 5 | 6.3 | 7 | 11 | 7 | h25nh50 |
| VDI-KL-10 (10) | 32 | 32 | 16 | 11 | 10 | 10 | 11.5 | 17.5 | 11.5 | h63nh160 |
