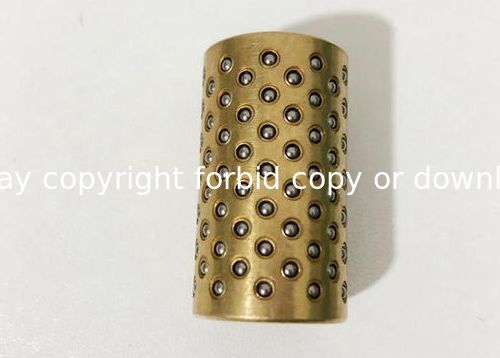

Copper Ball Retainers Bearing / Ball Cage Sankyo punch Panch INW Standard
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Dimeter: | M3 M4 M5 M6 | Application: | Cam Unit |
|---|---|---|---|
| Size: | Customized | Standard: | Sankyo |
| Type: | Ball Head | Material: | Steel |
| Highlight: | stamping die parts,cam slide plate |
||

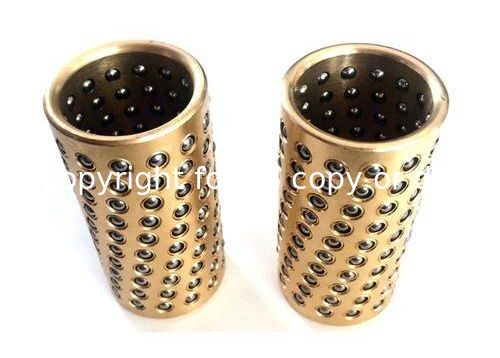

Copper Ball Retainers Bearing / Ball Cage
High-quality ball retainers and ball cages manufactured to Sankyo punch Panch INW standards for precision industrial applications.
Product Overview
Ball Retainer Components
Materials: Aluminum, Brass, POM (Polyoxymethylene)
Standards: HASCO, DME, JIS, and custom specifications following customer drawings
Samples: Free samples available with no minimum order quantity
Technical Specifications
- Highly polished finish: 6-8 micro finish
- Precision form ground to close diameter tolerance: +.0002/-.000
- Common fractional sizes readily available
- M-2 high speed steel with 60-62 Rockwell C hardness
- Custom sizes available up to 1" diameter
- Custom hardness RC 64-65 and triple drawn options available upon request
Product Variants & Specifications
206.71.008.040
Ball cage with circlip groove, Brass, D1=8, L=40, L1=39
| Guide diameter D1: | 8 MM |
| Nominal ordering length of ball cage L: | 40 MM |
| Manufacturing length of ball cage L1: | 39 MM |
| Weight GEW: | 0,01 KG |
206.71.010.024
206.71.010.024 BALL CAGE MIT SICHERUNGSRINGEINSTICH
206.71.010.028
206.71.010.028 BALL CAGE MIT SICHERUNGSRINGEINSTICH
206.71.010.031
206.71.010.031 BALL CAGE MIT SICHERUNGSRINGEINSTICH
206.71.010.040
Ball cage with circlip groove, Brass, D1=10, L=40, L1=39
| Guide diameter D1: | 10 MM |
| Nominal ordering length of ball cage L: | 40 MM |
| Manufacturing length of ball cage L1: | 39 MM |
| Weight GEW: | 0,018 KG |
206.71.010.045
206.71.010.045 BALL CAGE MIT SICHERUNGSRINGEINSTICH
206.71.010.050
206.71.010.050 BALL CAGE MIT SICHERUNGSRINGEINSTICH
206.71.010.056
Ball cage with circlip groove, Brass, D1=10, L=56, L1=57
| Guide diameter D1: | 10 MM |
| Nominal ordering length of ball cage L: | 56 MM |
| Manufacturing length of ball cage L1: | 57 MM |
| Weight GEW: | 0,027 KG |
Additional product variants available with similar specifications for various guide diameters and lengths.
